HomepaginaDESOI PowerInject SP15
13615_DESOI Powerinject SP15.jpg
13615_DESOI Powerinject SP15.jpg 13615_DESOI PowerInject SP15_Druckschalter.jpg 13615_DESOI PowerInject SP15_Foerdermengenregulierung.jpg

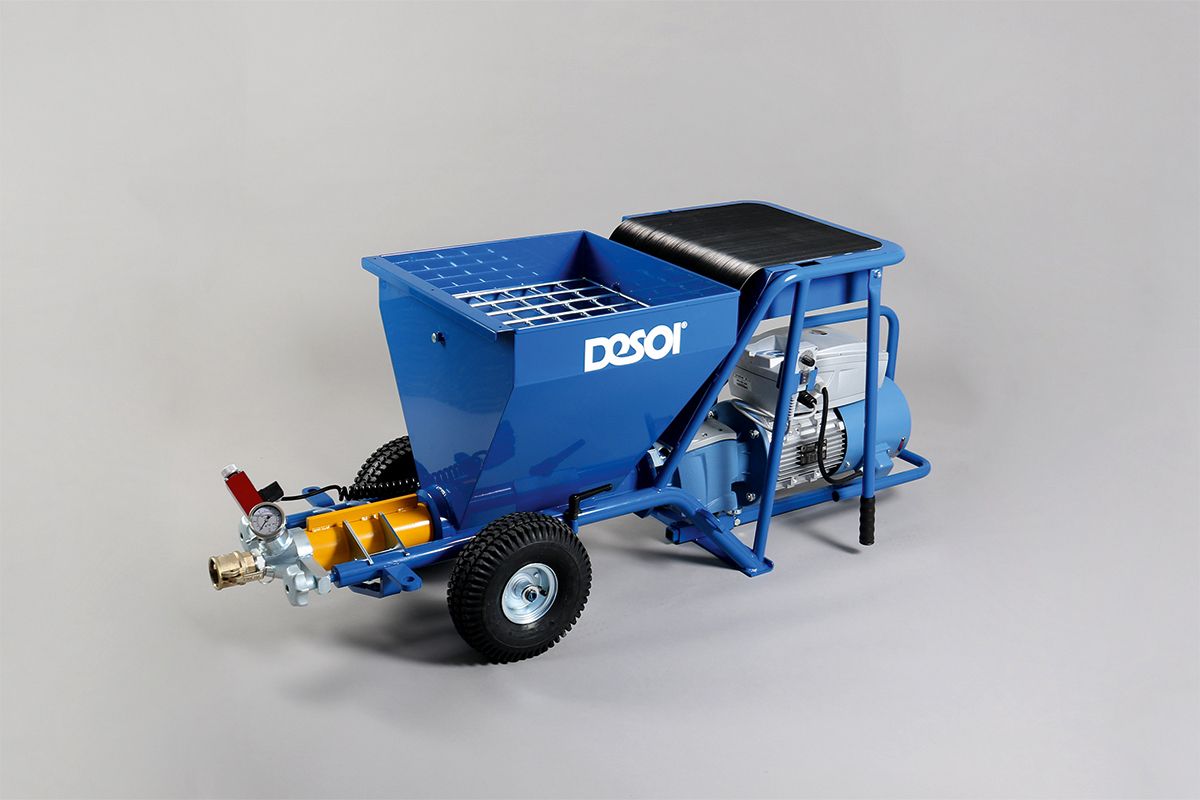

DESOI PowerInject SP15

moving device, 80 litre material container, rotor (yellow), stator (yellow), automatic stator puller, remote control with continuous delivery, control, pressure gauge unit with manometer, 0 - 100 bar and manometric switch, connection material hose mortar coupling type 35, 1 sprayer of silicone, incl. instruction manual
Voordeel/aanwijzing
  • Material container empties nearly completely
  • Easy operation and cleaning
  • Big material passages - high delivery
Invoermateriaal
  • SPCC mortar for the repair of concrete, prestressed concrete and reinforced concrete structures (e.g. Pagel CM20)
  • Stable 2C silicate mortar for coating and reprofiling (e.g. Remmers Silicate R).
  • Fibre-reinforced SPCC mortar for repairing concrete structures (e.g. Remmers Betofix R4)
  • Fire-resistant, fibre-reinforced SPCC concrete substitute (e.g. MC Nafufill KM 250)
  • PCC filler (e.g. Pagel MS05)
Technische gegevens
Supply 400 V/16 A
Motor power 4 kW
Grain size max. 8 mm
Filling height 68 cm
Weight 154 kg
L x W x H 174 x 70 x 71cm

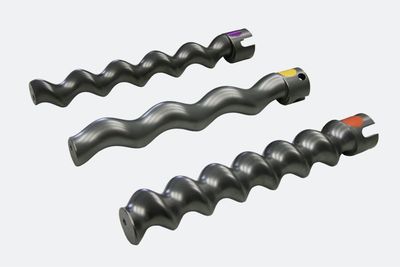

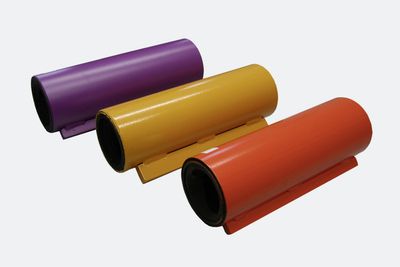

Rotor/stator - violet ¹ Working pressure* infinitely variable 68 bar Delivery rate* infinitely variable 0 - 14 l/min
Rotor/stator - red ² Working pressure* infinitely variable 65 bar Delivery rate* infinitely variable 0 - 11 l/min
Rotor/stator - yellow ³ Working pressure* infinitely variable 25 bar Delivery rate* infinitely variable 0 - 30 l/min
*max. working pressure and delivery acc. to VDMA 24284
Productbeschrijving

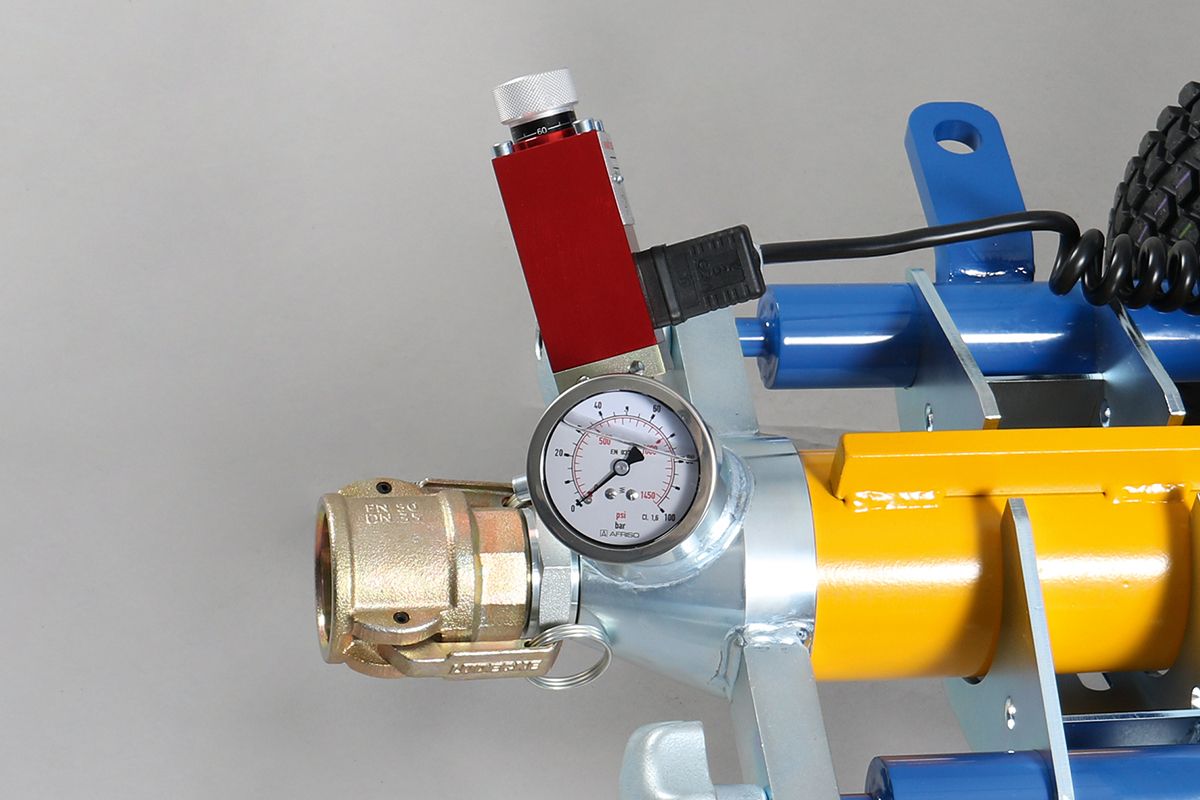

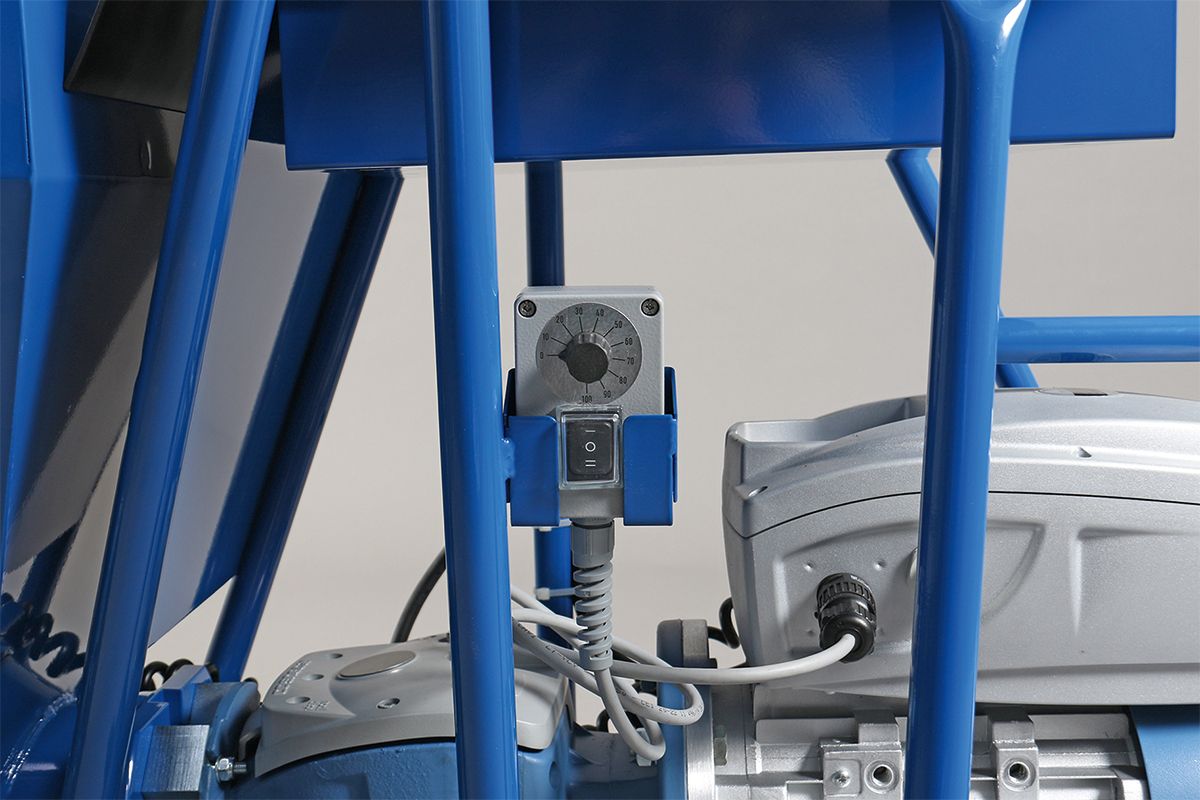

The versatile spiral pump DESOI PowerInject SP15 processes material up to grain size 8 mm. By the manometric switch at the machine outlet the injection pressure is infinitely variable. With the remote control the delivery can be controlled continuously from stop to maximum.
