DESOI w.i.l.m.a. - Data management system
Tariff Annual flat

The service fee for DESOI w.i.l.m.a. devices includes for the software of the IoT platform: - Licence fee - maintenance fee - updates - services - Annual fee, incl. all services - Tariff price per device - Detailed billing at the end of the year per device - without prepayment - Cancellable within 4 weeks at the end of the year - Contract area EU, other countries on request The general terms and conditions and the SaaS contract of Desoi GmbH apply.

DESOI w.i.l.m.a. - AY
DESOI AirPower M35-3C VA

moving device, 1.2 m suction system Ø 20 mm with suction basket Ø 100 mm: component A and B: black, 2 x manometer 0 - 250 bar, rinsing pump S25, 1.2 m suction system Ø 13 mm with suction basket Ø 40 mm: black, material hose connection: component A: external thread M16x1,5; component B: external thread M14x1,5; rinsing connection: external thread M12x1,5; return hoses Ø 8 mm: transparent, air connection: air plug NW 7.2, DESOI w.i.l.m.a.: control cabinet with integrated control, 10 m supply cable, on/off switch, control lamp, 2 x flow sensor, pressure sensor, Tablet Microsoft Surface Go 2 Platinum with protective cover, incl. instruction manual A professional briefing is mandatory. This is free of charge via video conference. On-site instruction is also possible by arrangement and at a charge. A tariff must be selected for the w.i.l.m.a. data management system.

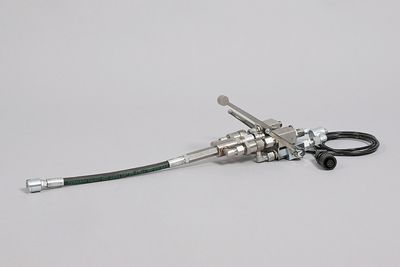

3C mixing head - stainless steel

for DESOI w.i.l.m.a. - AY 2 x HP ball valve, 2 x HP ball valve steel (rinsing), 2 x check valve, mixing housing with pressure sensor 0 - 250 bar, static mixing tube with 4 x inline static mixer, sliding coupling with free passage Ø 4 mm, material hose connections: component A: M16x1.5; component B: M14x1.5; rinsing connection: M12x1.5

DESOI w.i.l.m.a. - Data management system
Tariff Dayflat

The service fee for DESOI w.i.l.m.a. devices includes for the software of the IoT platform: - Licence fee - maintenance fee - updates - services - Daily flat rate per active day - max. annual fee 659,88 € - plus commitment fee per year - Tariff price per device - Daily flat rate in the period from 00:00 to 24:00 h - Detailed billing at the turn of the year per device - without prepayment - Cancellable within 4 weeks at the end of the year - Contract area EU, other countries on request The general terms and conditions and the SaaS contract of Desoi GmbH apply.

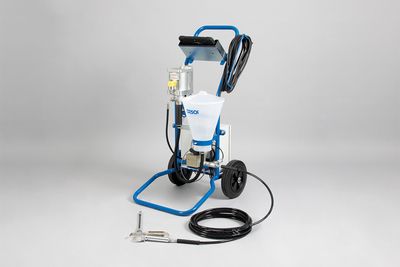

DESOI w.i.l.m.a. - PU-1C
DESOI AirPower S25

frame, 6 l material container transparent with scale and cover, material hose connection: external thread M12x1.5, air connection: air plug NW 7.2, DESOI w.i.l.m.a.: control cabinet with integrated control, 10 m supply cable, on/off switch, control lamp, flow sensor, pressure sensor, Tablet Microsoft Surface Go 2 Platinum with protective cover, Accessories: No. 16811: HP hose - steel Ø 6 mm, 10 m, union nuts M12x1.5 (solvent-resistant), No. 16733: HP injection gun 0 - 250 bar, (external thread M12x1.5; whip 0.3 m; mouth piece) incl. instruction manual A professional briefing is mandatory. This is free of charge via video conference. On-site instruction is also possible by arrangement and at a charge. A tariff must be selected for the w.i.l.m.a. data management system.

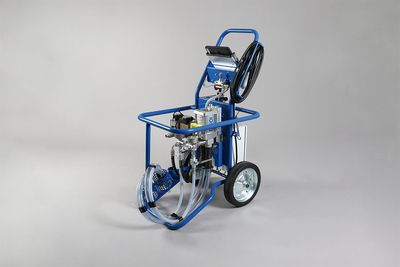

DESOI w.i.l.m.a. - PU
DESOI AirPower L36-2C

moving device, 3 m suction system Ø 20 mm with suction basket Ø 100 mm: component A: transparent, component B: black, 2 x manometer 0 - 400 bar, material hose connection: component A: external thread G1/2", component B: external thread G3/8", return hoses Ø 13 mm: transparent, air connection set: claw coupling 42 mm, air plug NW7.2; DESOI w.i.l.m.a.: control cabinet with integrated control, 10 m supply cable, on/off switch, control lamp, 2x flow sensors, pressure sensor, Tablet Microsoft Surface Go 2 Platinum with protective cover, incl. instruction manual A professional briefing is mandatory. This is free of charge via video conference. On-site instruction is also possible by arrangement and at a charge. A tariff must be selected for the w.i.l.m.a. data management system.

moving device, material hose connection at your option, flow sensor, pressure sensor, DESOI w.i.l.m.a.: control cabinet with integrated control, 10 m supply cable, on/off switch, control lamp, Tablet Microsoft Surface Go 2 Platinum with protective cover, incl. instruction manual A professional briefing is mandatory. This is free of charge via video conference. On-site instruction is also possible by arrangement and at a charge. A tariff must be selected for the w.i.l.m.a. data management system.

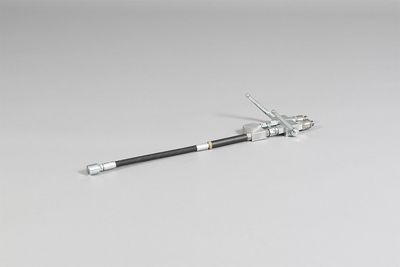

2C mixing head - steel

2 x HP ball valve, 2 x check valve stainless steel, mixing tube with 12 x inline static mixer, whip 0.3 m long, sliding coupling straight with free passage Ø 2.5 mm, material hose connections: component A: M16x1.5; component B: M14x1.5

DESOI w.i.l.m.a. - Data management system
Rent tariff

Data management included includes: software & usage rights for the rental period Rental costs depending on version on request, plus cleaning and/or maintenance costs.

DESOI w.i.l.m.a. - Data management system
Tariff Offline

Data download in CSV format via USB-C or WLAN 64 MB ring memory for up to 500,000 measuring points

DESOI w.i.l.m.a.

Met DESOI w.i.l.m.a. beschikt u over nieuw ontwikkelde technologie die niet alleen uw injectieprocessen documenteert, maar ook actief bewaakt. Dit besturingssysteem is beschikbaar in vier verschillende versies en beveiligt alle processen van uw injectietechniek. DESOI w.i.l.m.a. registreert de druk, het volume, de tijd en de afwijking van de injectieprocessen. Om ervoor te zorgen dat er tijdens de injectie geen ontoelaatbare afwijkingen optreden, kunnen er vooraf grenswaarden voor mengverhouding, druk en volume worden ingesteld. Bij overschrijding van deze waarden wordt de gehele installatie uitgeschakeld of verschijnt er een melding op het display.

DESOI w.i.l.m.a.
Recording and documentation of injection and dosing processes

open PDF

DESOI w.i.l.m.a. - FLYER

open PDF

Om ervoor te zorgen dat uw gevoelige gegevens met betrekking tot het injectieproces worden beschermd, communiceren de tablet en het basisstation via een beveiligde WLAN-verbinding. Alle gegevens zijn voor de gebruiker beveiligd met een wachtwoord en worden uitsluitend op een server in Duitsland verwerkt en beheerd. U bent dus volledig gedekt.

Leveringsomvang

Schakelkast met geïntegreerde besturing, 10 m netaansluitkabel, aan/uitschakelaar, controlelampje, debietsensoren, druksensor, slagvaste en waterdichte CATERPILLAR (tot 1 m) T20 tablet met Windows 10, inclusief gebruiksaanwijzing

DESOI w.i.l.m.a. gedocumenteerd

Materiaalverbruik per pakking
Mengverhouding
Injectiedruk per pakking
Injectieduur per pakking
Volgorde van de injectie
Aantal herhaalde injecties
Datum en tijd van de injectie

DESOI-serviceaanbieding

Individueel technisch advies
Systeeminstructie door vakmensen op de werf

Gebruiksmaterialen

Acrylaatgel
PU- en silicaatharsen
Minerale vulstoffen (cement)

Beveiliging voor planners en bouwers

De apparaten van DESOI w.i.l.m.a. garanderen dat de verbruikshoeveelheden gespecificeerd in de planning en voorgeschreven technische parameters permanent worden bewaakt en nageleefd, bijv. mengverhouding en injectiedruk. De daarop afgestemde machine-technologie is betrouwbaar, robuust, in de praktijk getest en maakt een hoge uitvoerzekerheid mogelijk. Op verzoek kan het systeem worden uitgerust voor specifieke projecten en toepassingen.
