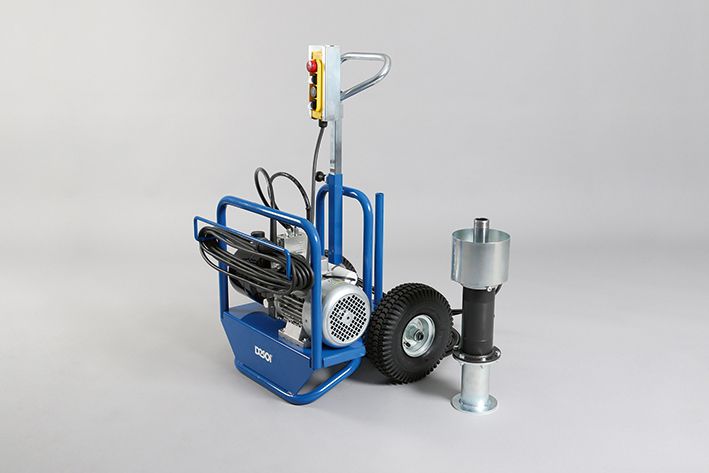

DESOI PullDevice H-1

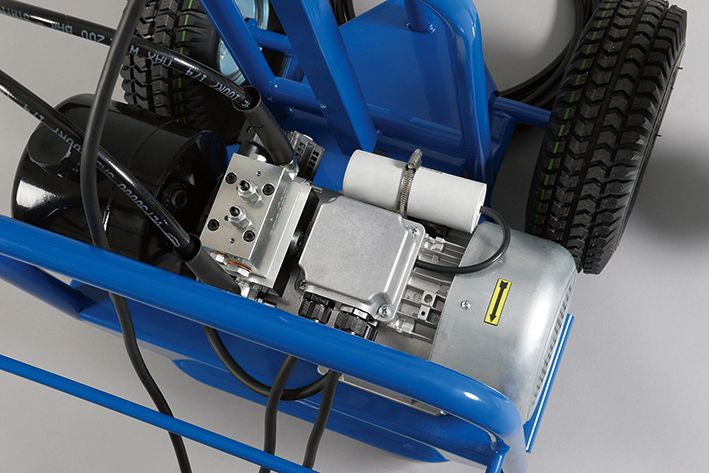

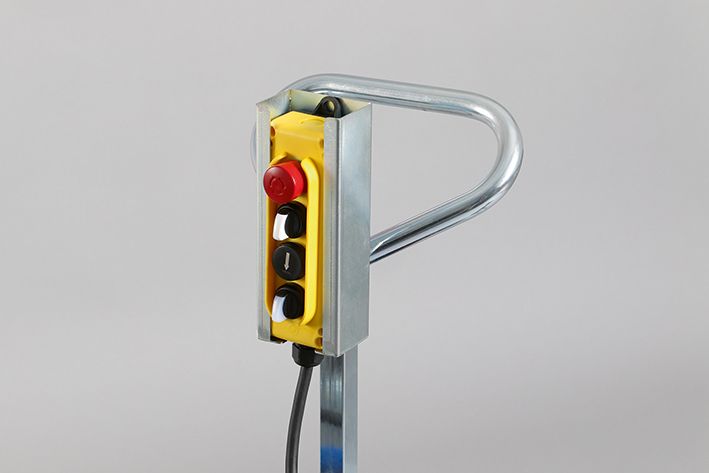

with electric hydraulic unit 230 V, moving device, a double-acting special cylinder with, through bore Ø 30 mm, holding plate for drawing head, 2 x 5 m hydraulic hose Ø 6 mm and, remote control, incl. instruction manual
Voordeel/aanwijzing
  • Usable for ram injection lances G1/4" or G1/2"
  • Optimal power transmission
  • Mobility through moving device
  • Tightening speed adjustable
  • Easy operation
Technische gegevens
Power supply 230 V/50Hz
Motor power approx. 1.1 kW
Working pressure max. 100 bar
Pull-out force max. approx. 2400 kg
Pull-out path (piston stroke) max. 100 mm
Tank capacity 2.8 l
Type of oil HLP 46
Weight 56 kg
L x W x H 60 x 55 x 81 cm
Productbeschrijving
mobile, pneumatic pulling device DESOI PullDevice H-1 with a double-acting cylinder and switching to automatic mode for pulling the ram injection lances.
